13A 300V 7/8" Waterproof Female Connector 3 4 5 Pin 12mm Metric

Brand Name : RIGOAL

Model Number : 7/8 cable

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Pins : 3pin 4pin 5pin

Pin : Brass/Gold

IP degree : ip67/68

Type : Molded

Rated current : 13A

Rated voltage : 300V

Operating Temperature : -20℃~80 ℃

Connector locking system : Screw

Contact Now

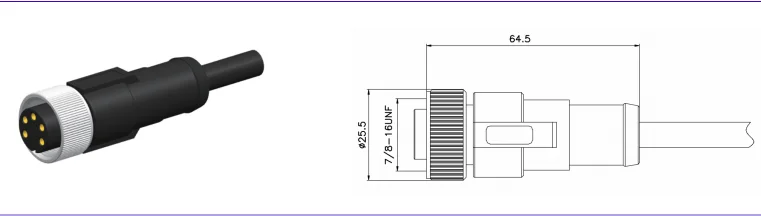

7/8" waterproof female 3pin 4pin 5pin molded straight cable with free end

Product Description
13A 300V 7/8" Waterproof Female Connector 3 4 5 Pin 12mm Metric
13A 300V 7/8" Waterproof Female Connector 3 4 5 Pin 12mm Metric
13A 300V 7/8" Waterproof Female Connector 3 4 5 Pin 12mm Metric
The 7/8 Circular Connectors is the connector of 12mm metric size with thread locking mechanism, which is most used in factory
automation, connecting with sensors, robots, motors, packing and delivery system
Link Signal Electronics Provides the M8Overmold Male /Female Straight /Angled Connector with 3, 4, 5, 6, 8, 17 Poles
13A 300V 7/8" Waterproof Female Connector 3 4 5 Pin 12mm Metric
13A 300V 7/8" Waterproof Female Connector 3 4 5 Pin 12mm Metric

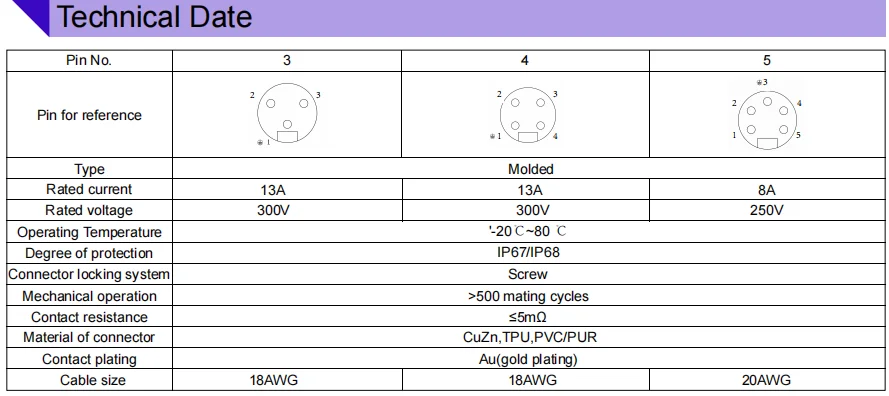

Specification
item
value
Place of Origin
China
Guangdong
Brand Name
RIGOAL
Model Number
7/8 cable
Type
ADAPTER
Application
Automotive

Packing & Delivery
13A 300V 7/8" Waterproof Female Connector 3 4 5 Pin 12mm Metric
13A 300V 7/8" Waterproof Female Connector 3 4 5 Pin 12mm Metric
1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30cm 2. OEM/ODM package is avaiable 3. According to customer choice.
